TD	Terminal Dişi Grubu
TB	Bayrak Terminal Grubu
TE	Terminal Erkek Grubu
TŞ	Terminal Şase Grubu
TÇ	Terminal Çatal Grubu
TŞB	Boru Tipi Terminal Grubu
TYD	Terminal Yuvarlak Dişi Grubu
TYE	Terminal Yuvarlak Erkek Grubu
TK	Terminal Kurtağzı Grubu
TEK	Ek Terminal Grubu
TBA	Bakır Terminal Grubu
TÖZ	Özel Terminal Grubu
TSAC	Sac Terminal Grubu


KD	Dişi Konnektör Serisi
KE	Konnektör Erkek Serisi
KL	Konnektör Klemens Serisi
KK	Konnektör Kilitli Kılıf Serisi
K	Konnektör Kılıfı Serisi
KF	Konnektör Far Fişi Serisi
KR	Role Ayağı
KYD	Konnektör Yuvarlak Dişi Serisi
KYE	Konnektör Yuvarlak Erkek Serisi
KB	Konnektör Kutup Başı Serisi
TM	Terminal Montaj Serisi

Product Definition

Standarts

Products in the series are divided in to groups. The code numbers and Descriptions are as follows.

PRODUCT SERIAL CODE NO	PRODUCT DESCRIPTION
TERMINAL
TD 2100	Fast on Type Receptacles
TB 2200	Flag Terminal Series
TE 2300	Fast on Tabs
TŞ 2400	Open Barrel Ring Tongue
TÇ 2500	Open Barrel Spade
TŞB 2550	Closed Barrel Wire
TYD 2600	Tubular Type
TYE 2700	Tubular Type Plug
TK 2800	Spilices with Insulation Barrel
TEK 2850	Ens Splices
TBA 2900	Barrel Wire
TÖZ 2200	Special Terminal
TSAC 1900	Flat Series Male Terminal
TM 1800	Installation

CONNECTOR
KD 3100	Insulation Housing Female
KE 3200	Insulation Housing Male
KL 3300	Insulation Sleeves
KK 3400	Insulation Housing Locking Type
K 3500	Sleeve
KF 3600	Head Lamp Connector
KR 3700	Relay Connector
KYD 3800	Tubular Type Insulation Female
KYE 3900	Tubular Type Insulation Male
KB 4100	Terminal Head Connector

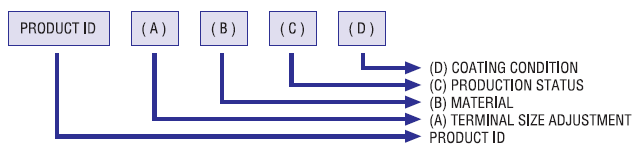

(A) DIMENSIONS OF FEMALE AND MALE TERMINAL TERMINAL ADJUSTMENT PROVISIONS
0.30 Adjustment	0.15 Gauge	0.70 Adjustment	0.45 Gauge
0.40 Adjustment	0.25 Gauge	0.80 Adjustment	0.55 Gauge
0.50 Adjustment	0.35 Gauge	0.90 Adjustment	0.70 Gauge
0.60 Adjustment	0.40 Gauge

(B) MATERIAL

P: Brass K: Tin B: Copper FB: Phosphor Bronze

FBK: Tinned Phosphor Bronze CN: Stainless S: (DKP-Galvanized)

PA66: Nylon 66 V0:Fireproof PA66 %30 Nylon %30 Glass Fiber PVC: PVC

I20: I20 PA06: Nylon 06

(C) PRODUCTION STATUS

R: Roll D: Single TM: Terminal Assembly

(D) COATING CONDITION

K: Tin Plating G: Silver Plated N: Nickel Plated
